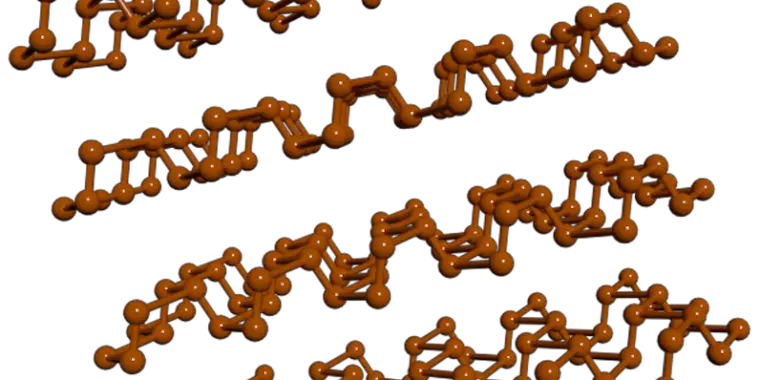

Layers of phosphorene sheets form black carbon.
Enlarge / Layers of phosphorene sheets kind black carbon.

Right now, electrical automobiles are restricted by the vary that their batteries enable. That’s as a result of recharging the automobiles, even beneath ultimate conditions, cannot be executed as rapidly as refueling an inside combustion automobile. So far, many of the effort on extending the vary has been targeted on growing a battery’s capability. But it may very well be simply as efficient to create a battery that may cost way more rapidly, making a recharge as fast and easy as filling your tank.

There aren’t any scarcity of concepts about how this may be organized, however a paper revealed earlier this week in Science suggests an uncommon method that it may be achieved: utilizing a materials known as black phosphorus, which types atom-thick sheets with lithium-sized channels in it. On its personal, black phosphorus is not a nice materials for batteries, however a Chinese-US crew has discovered how to manipulate it so it really works significantly better. Even if black phosphorus does not find yourself understanding as a battery materials, the paper gives some perception into the logic and technique of growing batteries.

Paint it black

So, what is black phosphorus? The easiest method to perceive it is by comparisons to graphite, a materials that is already in use as an electrode for lithium-ion batteries. Graphite is a type of carbon that is simply a giant assortment of graphene sheets layered on high of one another. Graphene, in flip, is a sheet fashioned by an infinite molecule fashioned by carbon atoms bonded to one another, with the carbons organized in a hexagonal sample. In the identical method, black phosphorus is composed of many layered sheets of an atom-thick materials known as phosphorene.

But there are key variations between the supplies. To start with, phosphorus is a bigger atom with extra electrons than carbon, and so it will possibly work together with extra lithium atoms, an important characteristic for battery electrodes. The different key distinction is that the bonds fashioned by carbon atoms be certain that graphene is basically flat, no thicker than the atoms of carbon it is fashioned from. The phosphorene sheets, as you’ll be able to see above, are most clearly not flat. Neighboring atoms are certain at angles that give the sheet a collection of ridges or channels.

It’s that characteristic that drew the researchers’ curiosity, since these angles kind an avenue to get lithium ions into and out of the fabric rapidly. And, as a result of every phosphorus atom can work together with a number of lithium ions, we solely know of two supplies with larger theoretical electrode capacities—considered one of them being lithium metallic itself. Finally, black phosphorus conducts electrical energy effectively, an essential characteristic for a battery electrode.

So, why is not everybody already utilizing black phosphorus? Well, principally as a result of it does not work. Like different electrode supplies, the black phosphorus expands as lithium ions get packed in, growing the chance of a structural failure throughout cost/discharge cycles. And on the edges of sheets, chemical bonds can kind between the totally different layers, sealing off among the channels. To get it to work as a battery materials, these points want to be fastened.

The repair is in

And that is precisely what this paper describes. To deal with the chemical bonds fashioned on the fringe of phosphorene sheets, they combined black phosphorus with graphite and floor the 2 up, permitting the atoms on the fringe of the phosphorene sheet to kind bonds with carbon atoms. While the graphite is not as efficient as a carbon storage medium, it is nonetheless good enough to use in batteries. And, by limiting the quantity of graphite to about 15 % of the full materials, they ensured that the black phosphorus dealt with nearly all of the lithium storage.

To get this materials to work with a stable electrolyte, the researchers coated it with a skinny polymer gel infused with liquid electrolyte. This ensured that, even if the electrode shifted round due to the massive inflow of lithium ions, it will nonetheless give you the chance to work together with the stable electrolyte. When they examined the fabric after biking it in a battery, in addition they came upon that it helped exclude chemical compounds fashioned by the breakdown of different battery supplies, which helped enhance the sturdiness. After 2,000 cycles, the electrode with this polymer coating had a capability 10 instances bigger than the identical materials with out it.

The researchers made a model of the electrode with pink phosphorus, which types a disordered mesh fairly than layered sheets. It solely had one-third the capability of the black phosphorus model, indicating the sheets have been wanted. Decreasing the quantity of graphite used to kind the electrode additionally diminished its total capability, regardless that it meant that extra black phosphorus was current, indicating that the carbon does play a key position in structuring the black phosphate.

Studies of the electrode confirmed the presence of carbon-phosphorus bonds. And a model of the electrode made with out graphite confirmed that it had a larger resistance to the insertion of lithium ions, as can be predicted if the carbon-phosphorus bonds stored neighboring phosphorene sheets from forming bonds with one another.

Fast cost

But the important thing query is whether or not the fabric permits a fast cost, which was the entire level of this train. Current lithium batteries handle a storage density of about 500 milliamp-hours per gram, however they cost very slowly. To cost a battery at instances aggressive with filling a fuel tank, the authors estimate they want a materials that may attain comparable ranges of storage while dealing with a charging present of over 5 Amps per gram.

The new materials has some fairly spectacular stats. When charged at a charge comparable to the one used for a typical lithium-ion battery, it had about thrice the storage density of an current lithium battery. When charged at a charge comparable to what’s wanted for their fast-charge goal, the cost density was nonetheless almost 800 mA-hr/g, leaving it forward of a lithium battery. It might even deal with charges of cost over double that with out a giant lower in capability. And, critically, these numbers got here after 2,000 cost/discharge cycles, indicating the battery is fairly sturdy.

These are simply the efficiency of a single electrode and not a complete battery. But the crew put a type of collectively too, and its efficiency was comparable to that of the electrode alone.

There are loads of causes that know-how like this does not in the end make it to market, from ease of producing to poor integration with the opposite parts wanted to make a commercially viable product. But this is a case in which a materials had already been recognized as promising, however simply wasn’t residing up to that potential. And, by demonstrating the problems that restricted it may very well be overcome, the analysis gives some indication that, even if this specific formulation does not work out, it may be attainable to remedy the identical issues with extra manufacturing-pleasant supplies.

Science, 2020. DOI: 10.1126/science.aav5842 .
